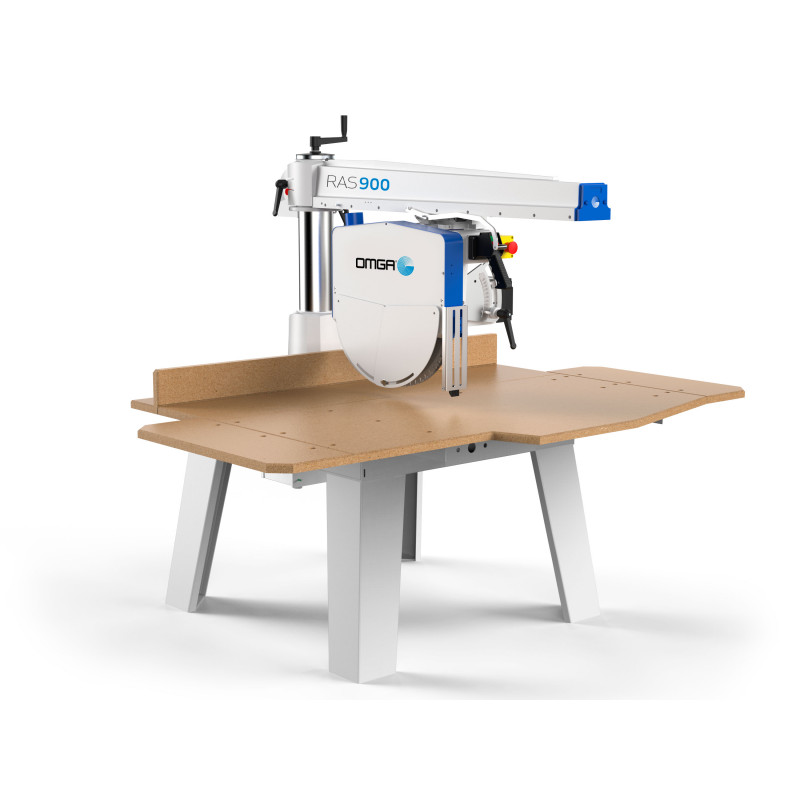

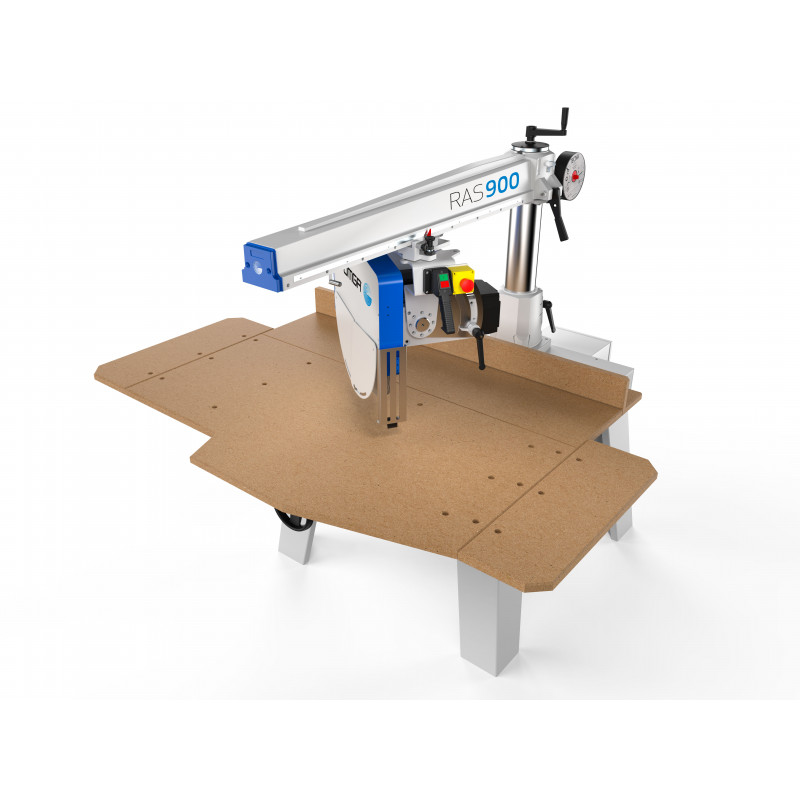

RAS 900
18" Radial Arm Saw 7.5HP Motor, 32 1/4" Cross Cut Capacity, 45" Rip Capacity. Cast Iron Arm.
More info
These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops.
Download literature
Download (1.32M)
Data sheet
| RAS 900 | RAS 1250 | |
|---|---|---|
| Max. Depth of cut 45 Deg. | 4" | 4 3/4" |
| Motor power | 7.5 HP | 7.5 HP |
| Saw bore | 1" | 1" |
| Saw Diameter | 18" | 20" |
| Arbor speed RPM | 3400 | 3400 |
| Bevel positive stops | 0-45 | 0-45 |
| Cross cut capacity | 32 1/4" | 44" |
| Table Size | 77" x 50" | 94" x 62" |
| Max. Depth of cut -90 | 5 3/4" | 6 3/4" |
| Miter positive stops | 45-0-45 | 45-0-45 |
| Overall dimensions | 77" x 50" | 94" x 62" |
| Ripping capacity | 45" | 56" |
| Shipping Weight Lbs. | 907 | 1012 |
| Crated Dimensions | 64" x 30" x 49" | 96" x 30" x 49" |
