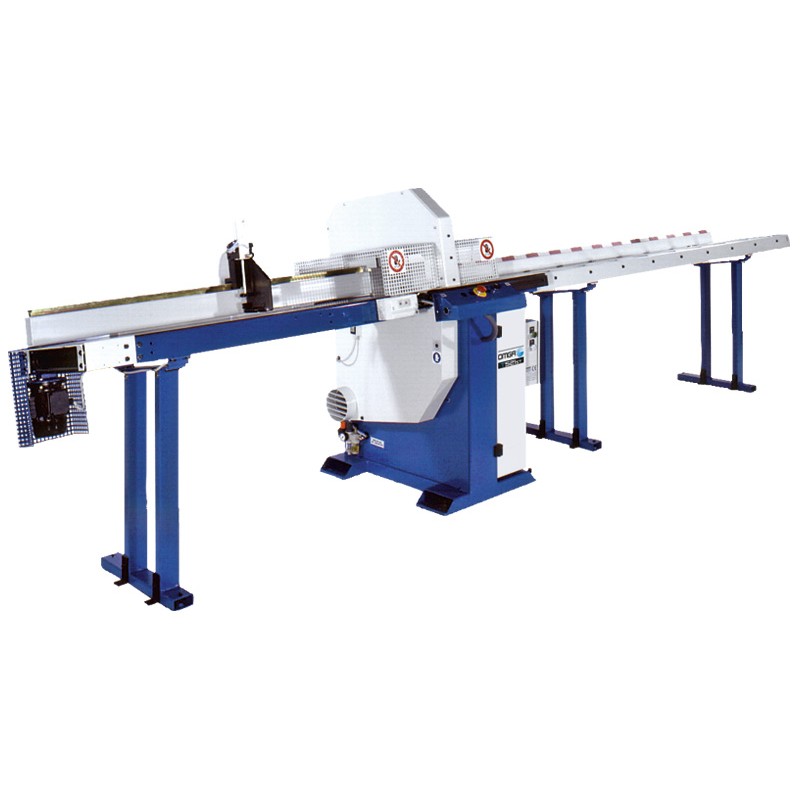

T 521 ST
18" Cut-Off Saw 6HP Motor 12 5/8" Cross Cut Capacity
More info

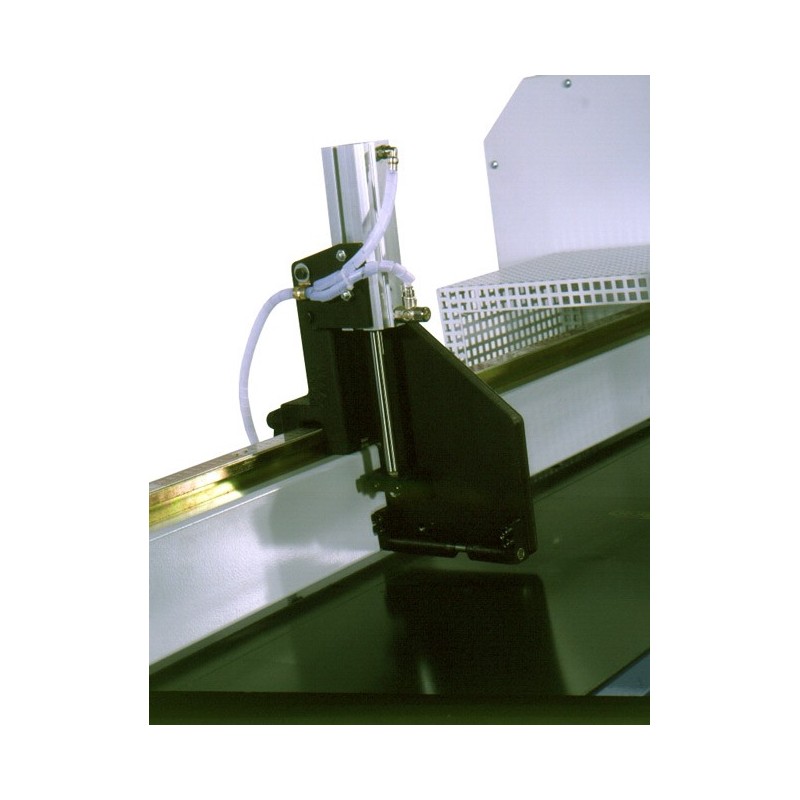

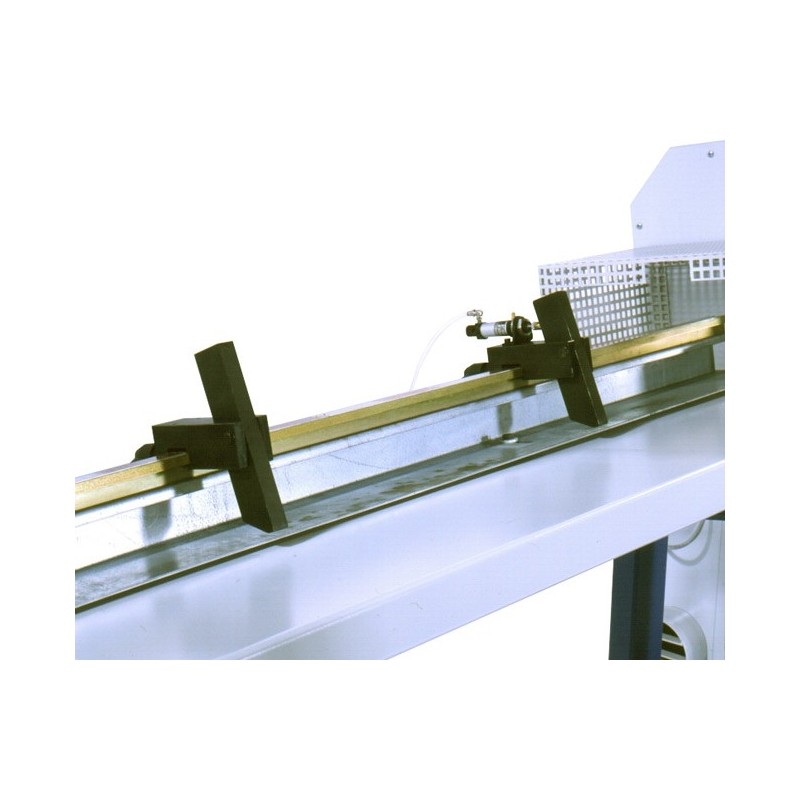

Pneumatic adjustable speed pop-up chop saw, pneumatically activated. Automatic workpiece clamping in cycle with blade stroke. The clamp also acts as the blade guard and ensures total safety for the operator. The unit is best suited for length cutting and defect removal. On request T 521 ST can be equipped with infeed and out feed roller table wit scale for positioning of manual or pneumatic flip over stops.
Download literature
Download (494.95k)
Accessories
| description | price | |
|---|---|---|
| 9' Outfeed Table with Fence |
$1,879.00 |
|
| 12' Outfeed Table with Fence |
$2,418.00 |
|
| 9' Table with Rollers and Fence |
$3,018.00 |
|
| 12' Table with Rollers and Fence |
$3,677.00 |
|
| Balancing Moveable Stop |
$683.00 |
|
| Pneumatic Moveable Stop |
$971.00 |
|
| 5' Motorized Outfeed Conveyor Belt |
$6,125.00 |
|
| 10' Motorized Outfeed Conveyor Belt |
$6,874.00 |
Data sheet
| Arbor speed RPM | 3200 |
| Dust Chute | 6" |
| Max. cutting width | 12 5/8" |
| Max. cutting depth | 5 1/2" |
| Motor power | 6 HP |
| Saw blade bore | 35 mm |
| Saw blade diameter | 18" (20" Opt.) |
| Overall dimensions | 28" x 37" x 39" |
