T 2020 NC

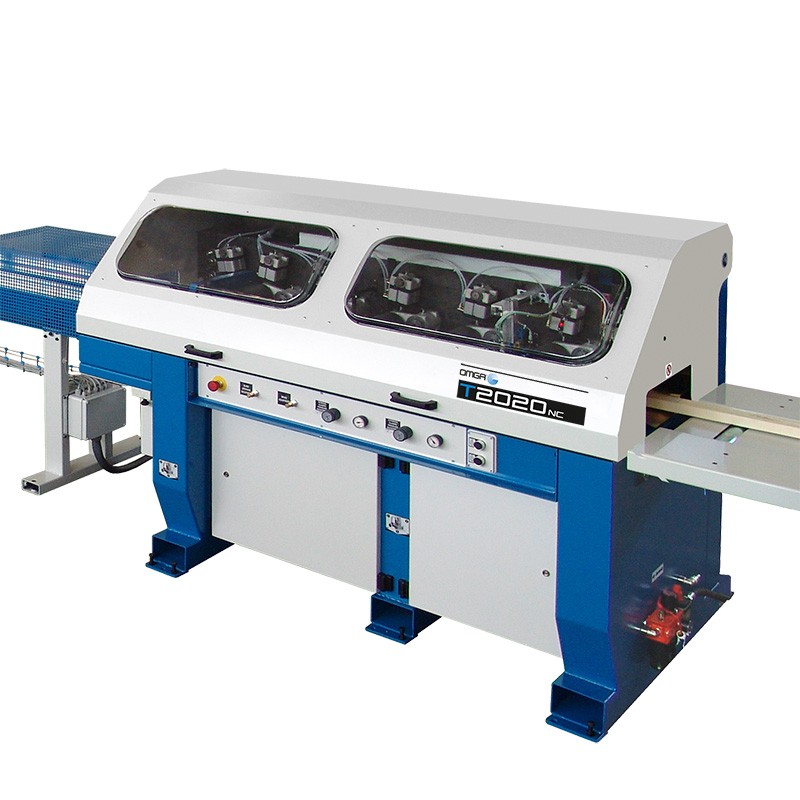

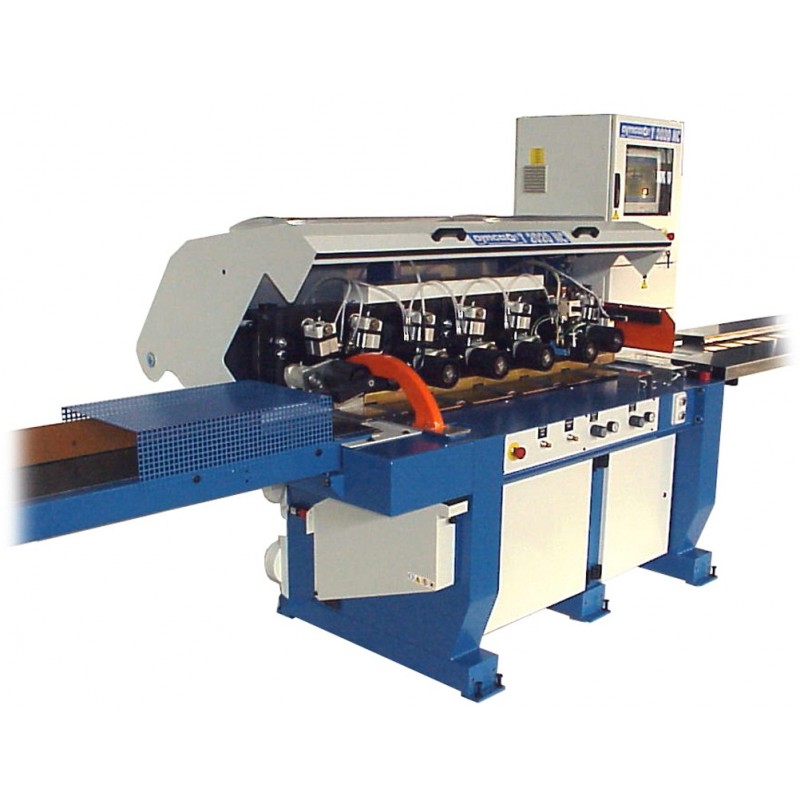

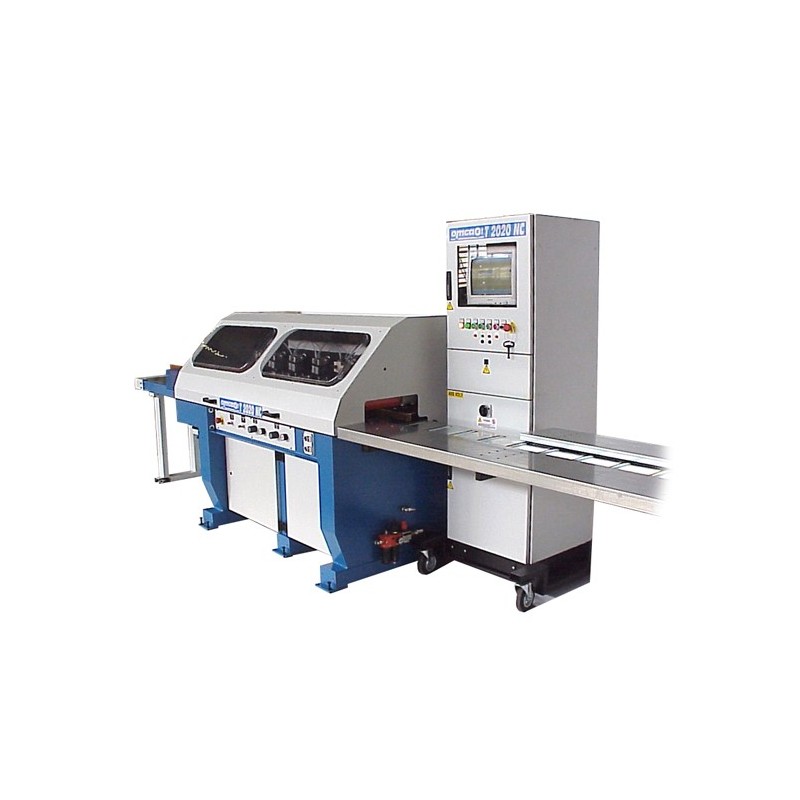

High Speed Automatic Cut-off Saw programmable for optimized cutting of wood stock and defect removal

More details

More info

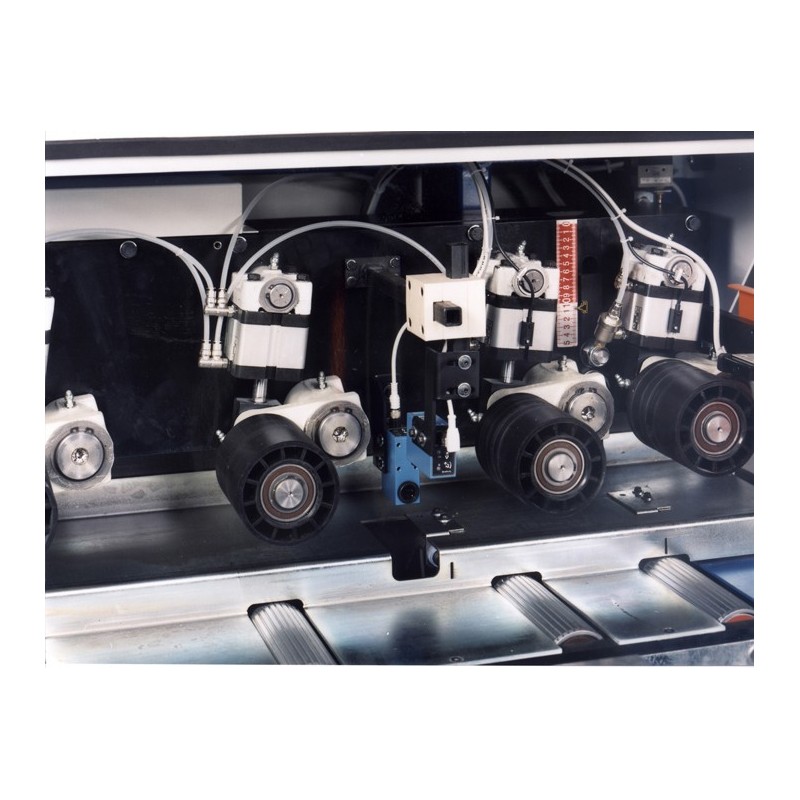

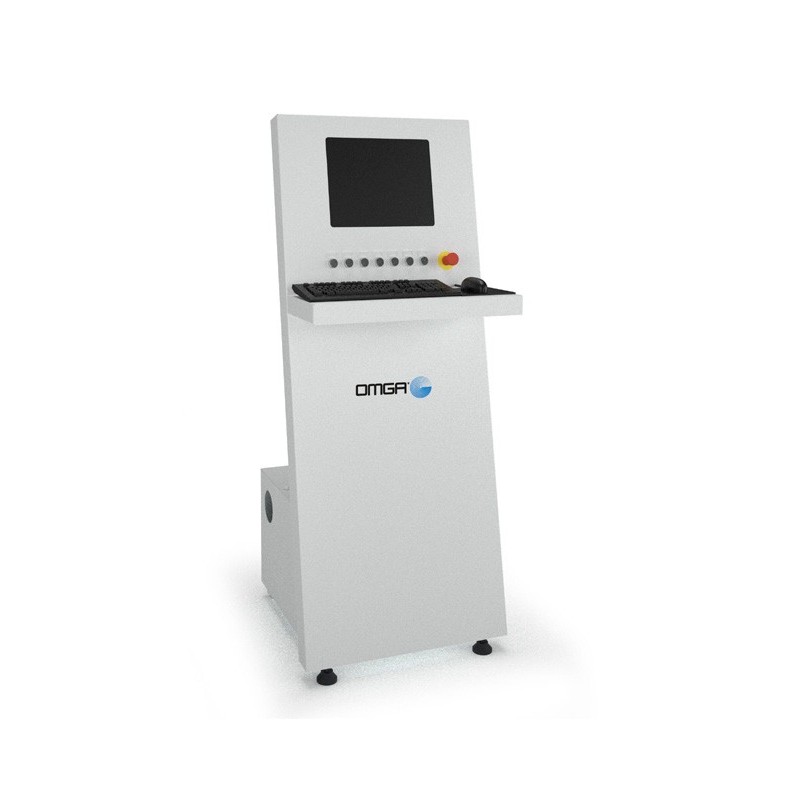

Particularly suitable for high production requirements given its very high maximum feed speed of 240 m/min. The set of 7 feeding rollers with corresponding top pressure rollers are able to compensate for dimensional variations of rough mill stock. The machine is equipped with a Windows based PC. The software is capable of performing eleven work cycle programs. Cutting lists can be input directly from the PC keypad, USB port, with direct serial connection to a remote PC or directly through the network. The software is complete with diagnostic and can also provide the following information: - Stock, in cubic metersrequired to produce the number of pieces in each list. - Number of pieces produced of each length. - Amount of stock in cubic meters divided into: first, second, third grade and waste - Cubic meters required to produce remaining parts. - Yield as a percentage of the total - The system can perform simulated cutting to test the result before processing the wood and allowing the user to decide about the parameter setting for the required production AVAILABLE OPTIONS: - Infeed Roller Tables. - Width Scanner. - Two Sided Marking Stations. - 2nd horizontal reading Camera. (for up to 5 grades). - Single sided CNC Workpiece Sorter with kickers. - Motorized loading systems.

Download literature

T2020-T2030_USA 01

Download (885.54k)

Data sheet

T 2020 NC T 2030 NC
Max. piece thickness 4 3/4" 4 3/4"
Max. piece width 12 5/8" 12 5/8"
Min. infeed length 23 5/8" 23 5/8"
Max. feed Speed 800 FPM 800 FPM
Saw blade motor power 7.5 HP 7.5 HP
Feed motor power 10 HP (7.5 kW.) 12 HP (9 kW.)
Max. Acceleration 50 feet/sec. 65 feet/sec.
Cutting Speed 0.2 - 1 sec. 0.2 - 1 sec.
Average number of cuts 80 - 90 min. 90 - 100 min.
