T 53 370

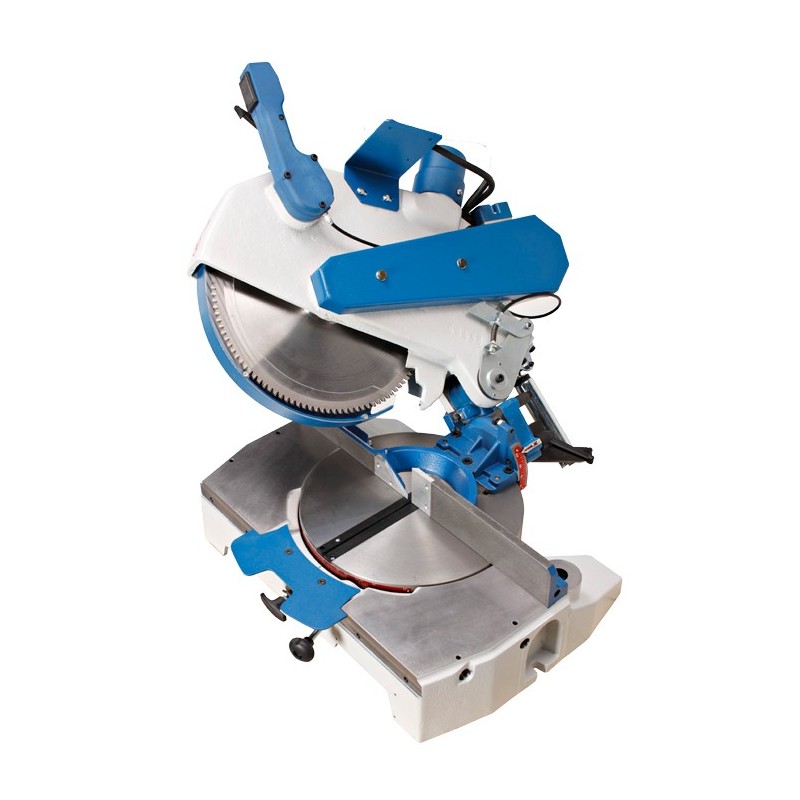

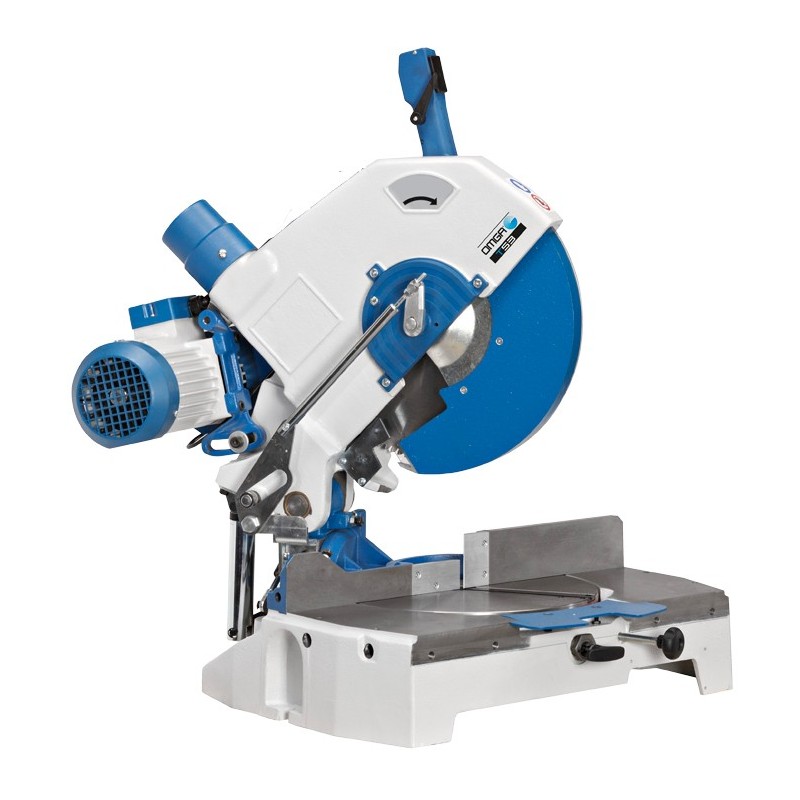

14" Compound Mitre Chop Saw 4HP Motor Width Cutting Capacity 6 11/16" Thickness Capacity 4 5/16"

More details

USD  $6,612.00

More info

Heavy duty and flexible are the two main features of this Compound Precision Mitre Chop Saw. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The unit is also equipped with a 45 degree positive stop for precision beveling. The belt driven transmission and a powerful 4 HP induction motor make the T 53 370 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi-purpose machine suitable for use in general carpentry, for cutting crown moulding, picture frames, furniture components and any application requiring precision cutting.

Download literature

T50-T53-1p350_USA_06

Download (957.93k)

Accessories

Data sheet

T 53 370 T 50 350 1P 350 F 1P 300 1L 300
Cross cut capacity 90 Deg. 6 3/4" 6 3/4" 6 9/32" 5 1/2" 5 7/8"
Cross cut capacity 45 Deg. 4 3/4" 4 3/4" 4 1/2" 3 15/16" 3 15/16"
Max. Depth of Cut 4 5/16" 4 5/16" 4 11/16" 3 1/8" 3 1/8"
Max. Depth of cut 45 Deg. 2" N /A N /A 1 1/16" 1 3/8"
Motor power 4 3 3 1.75 1.75
Max. Beveled Cross Cut 6 3/4" N /A N/A 5 1/2" 5 7/8"
Saw bore 1" 1" 30 mm 30 mm 30 mm
Crated Dimensions 28" X 28" X 33" 26" X 25" X 30" 38" x 25" x 21" 30 11/16" x 22" x 19" 24"x 20" x 22 1/2"
Saw blade diameter 14" 14" 350 mm 12" 12"
Arbor Speed RPM 3200 3200 3400 3400 3400
Dust Chute Diameter 3 1/8" 3 1/8" 60 mm 60 mm 60 mm
Table Size 25 5/8" X 20 1/8" 23 5/8" X 17 1/8" 29 1/2" x 6" 29 1/2" x 6" 19 11/16" x 6"
Shipping Weight Lbs. 255 222 115 51 47
